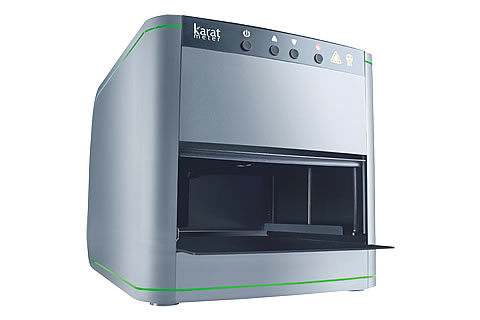

Karatmeter B-series is desktop fast, precise & non-destructive unit for accurate analysis of bulk material & layer thickness. The unit precisely & swiftly determines the percentage by weight (or Karat) in a solid piece of jewellery, precious coins or any other piece of noble metal making use of X-ray assay technique. It successfully determines the elemental composition of Gold alloys, Platinum group metals & Silver alloys. The analysis of bulk material & layer thickness is non-contact and non-destructive without any requirement for sample preparation. With additional calibration module, it can be even use for special coating thickness applications and plating chemical analysis.
| Karatmeter B1 | Karatmeter B2 | |
|---|---|---|
| Excitation Source | W-target, micro-focus, Be-window tube | W-target, micro-focus, Be-window tube |
| High Voltage | 50kV/1mA programmable | 50kV/1mA Programmable |
| Primary Filter | Fixed Al filter for precious alloys |
Fixed Al filter for precious alloys, Optional 5-selectable filters for specific applications |
| Collimator | Dual 0.5mm & 1.5mm |
Dual 0.5mm & 1.5mm Optional 4-position collimator changer |
| Detector Type | Silicon PIN diode detector, peltier cooled |
Silicon drift SDD detector, peltier cooled optional FSDD detector |
| Resolution | < 180eV |
< 160eV Optional Fast SDD package < 145eV |
| Sample Handling |
Manual scissor type z-stage Optional motorized z-stage with laser auto-focus Optional manual X-Y stage |
Manual scissor type z-stage Optional motorized z-stage with laser auto-focus Optional manual X-Y stage |
| Element Range | Ti (22) to U (92) | Al (13) to U (92) |
| Precision @60sec | < 1% | < 0.5% |
| Application Area | Corporate & chain jewellery showrooms, Assay offices, Gold exchange and common coating thickness applications | Gold refineries, Assay offices, Hallmarking centres, Bullion traders & merchants, major coating thickness and plating solution analysis |
| Dimensions (HxWxD) | 400x400x480mm | 400x400x480mm |
| Weight | approx. 30kgs | approx. 30kgs |
